uPVC Universal Window Hinge Kit Double Glazing Friction Stay PVC 13mm 17mm Stack 8 10 12 16 20 24 inch

UPVCSTORESKU: 96103

Length: 8 Inch
Price:
Sale price£3.82

Description

uPVC Universal Window Hinge Kit – Double Glazing Friction Stay

Available in 13mm and 17mm stack heights and sizes: 8, 10, 12, 16, 20, and 24 inches.

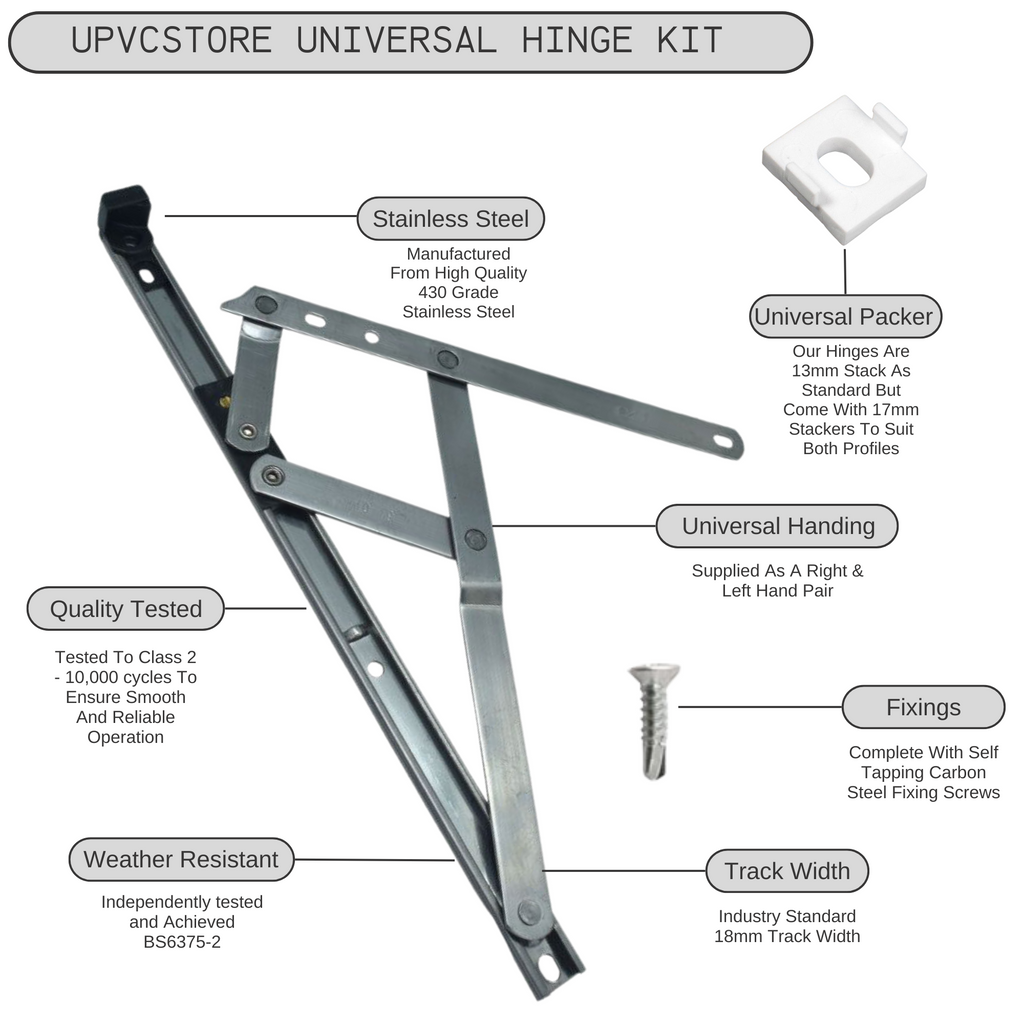

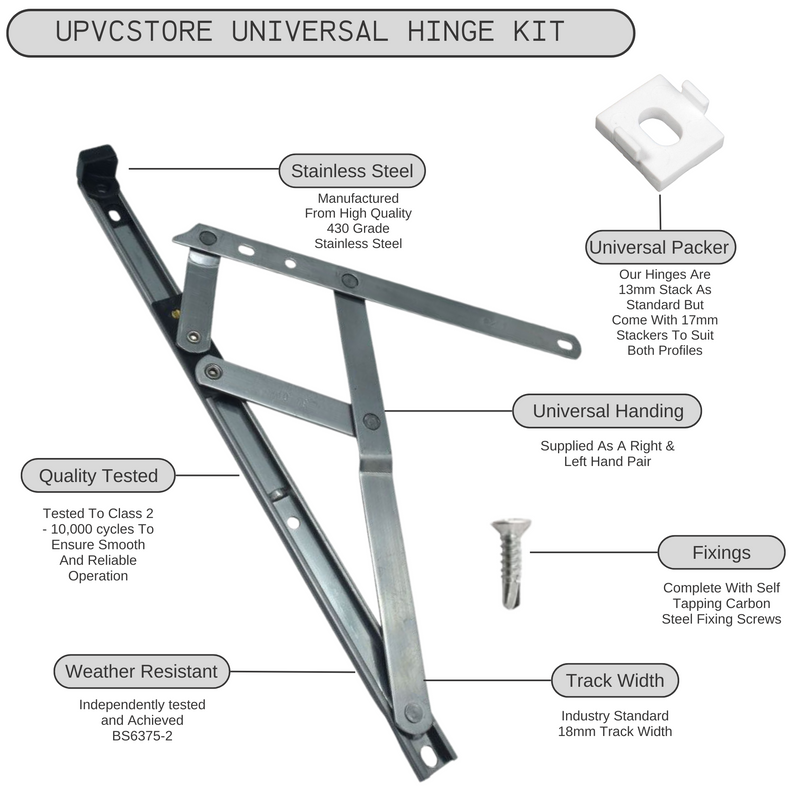

  • All hinges comply with BS6375-2 and are tested to Class 2 – 10,000 cycles
  • 18mm track width
  • 13mm stack supplied with packers to convert to 17mm stack
  • Manufactured from 430 Grade Stainless Steel

Technical Specifications

  • 8 Inch Universal Kit: 1 pair of 8 inch, top hung, 13mm stack with 17mm stackers, 64° opening angle, max sash weight 10kg, includes fixing screws
  • 10 Inch Universal Kit: 1 pair of 10 inch, top hung, 13mm stack with 17mm stackers, 88° opening angle, max sash weight 16kg, includes fixing screws
  • 12 Inch Universal Kit: 1 pair of 12 inch, top hung, 13mm stack with 17mm stackers, 88° opening angle, max sash weight 21kg, includes fixing screws
  • 16 Inch Universal Kit: 1 pair of 16 inch, top hung, 13mm stack with 17mm stackers, 84° opening angle, max sash weight 22kg, includes fixing screws
  • 20 Inch Universal Kit: 1 pair of 20 inch, top hung, 13mm stack with 17mm stackers, 42° opening angle, max sash weight 24kg, includes fixing screws
  • 24 Inch Universal Kit: 1 pair of 24 inch, top hung, 13mm stack with 17mm stackers, 38° opening angle, max sash weight 50kg, includes fixing screws

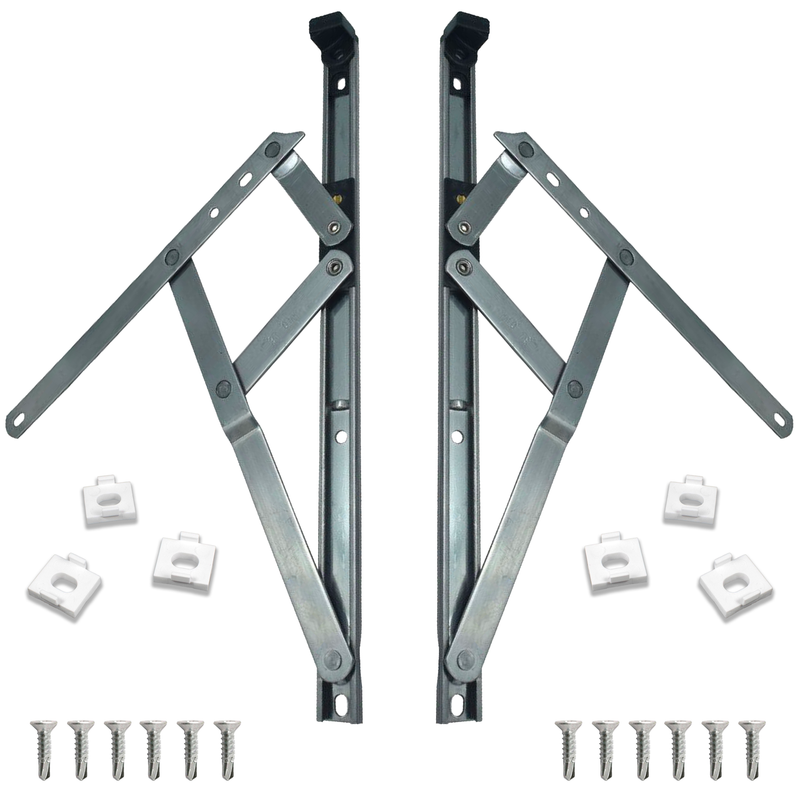

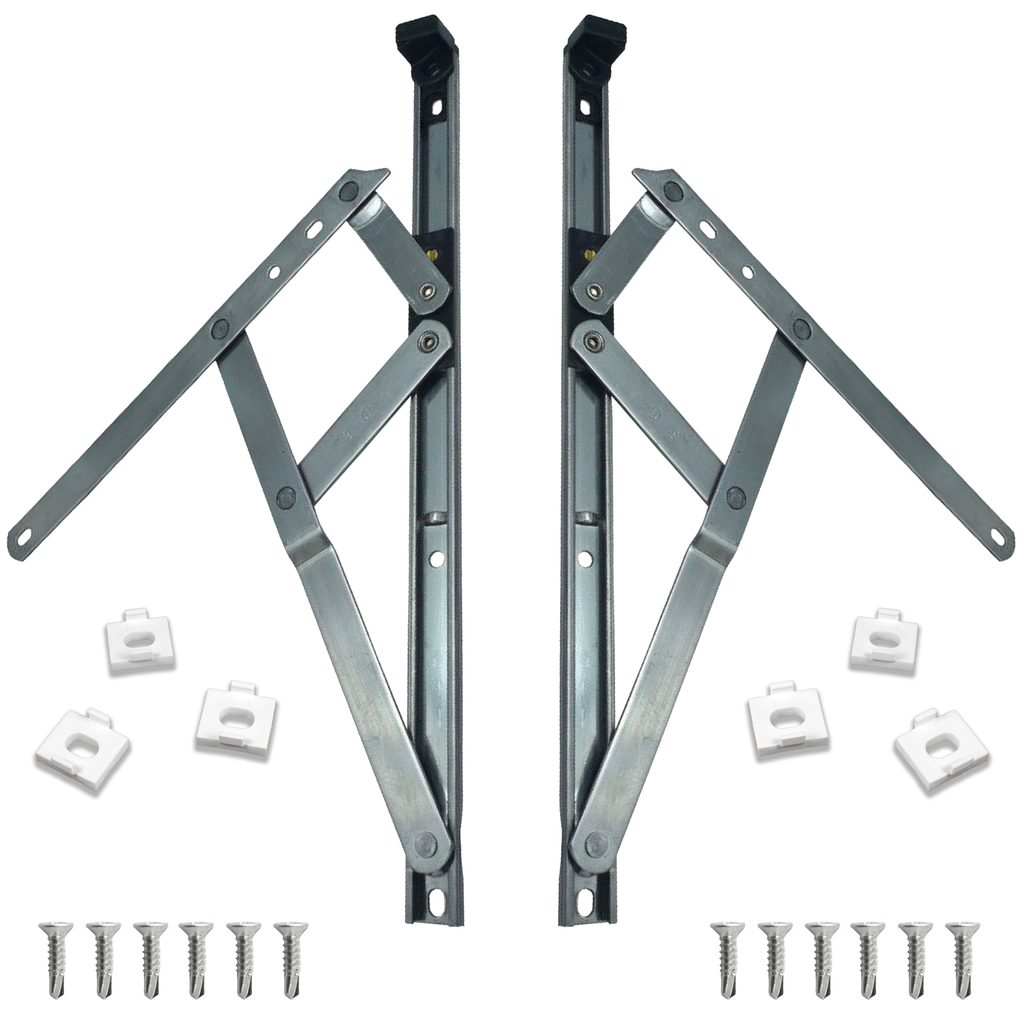

What's in the Kit?

  • 1 pair of window hinges
  • Fixing screws

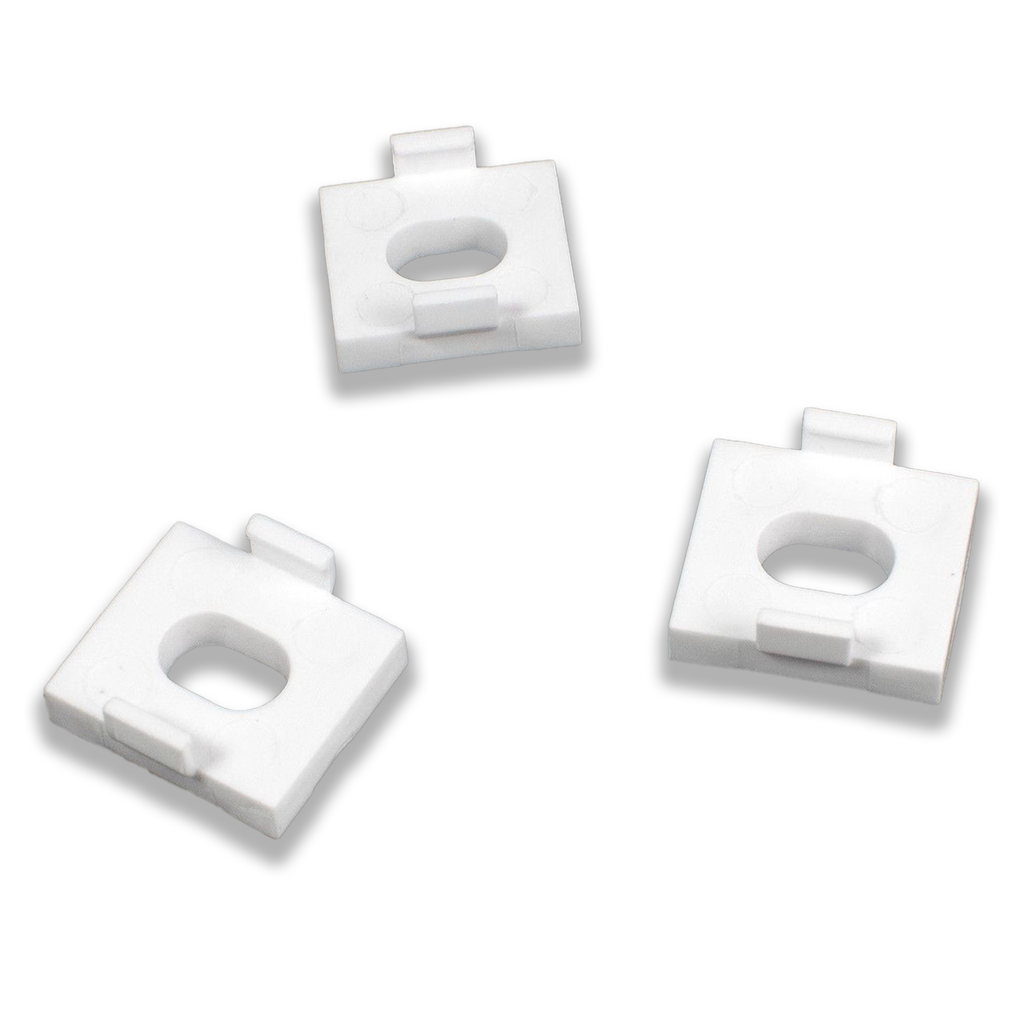

  • 17mm universal stackers
